EXCLUSIVE AUSTRALIAN DISTRIBUTOR

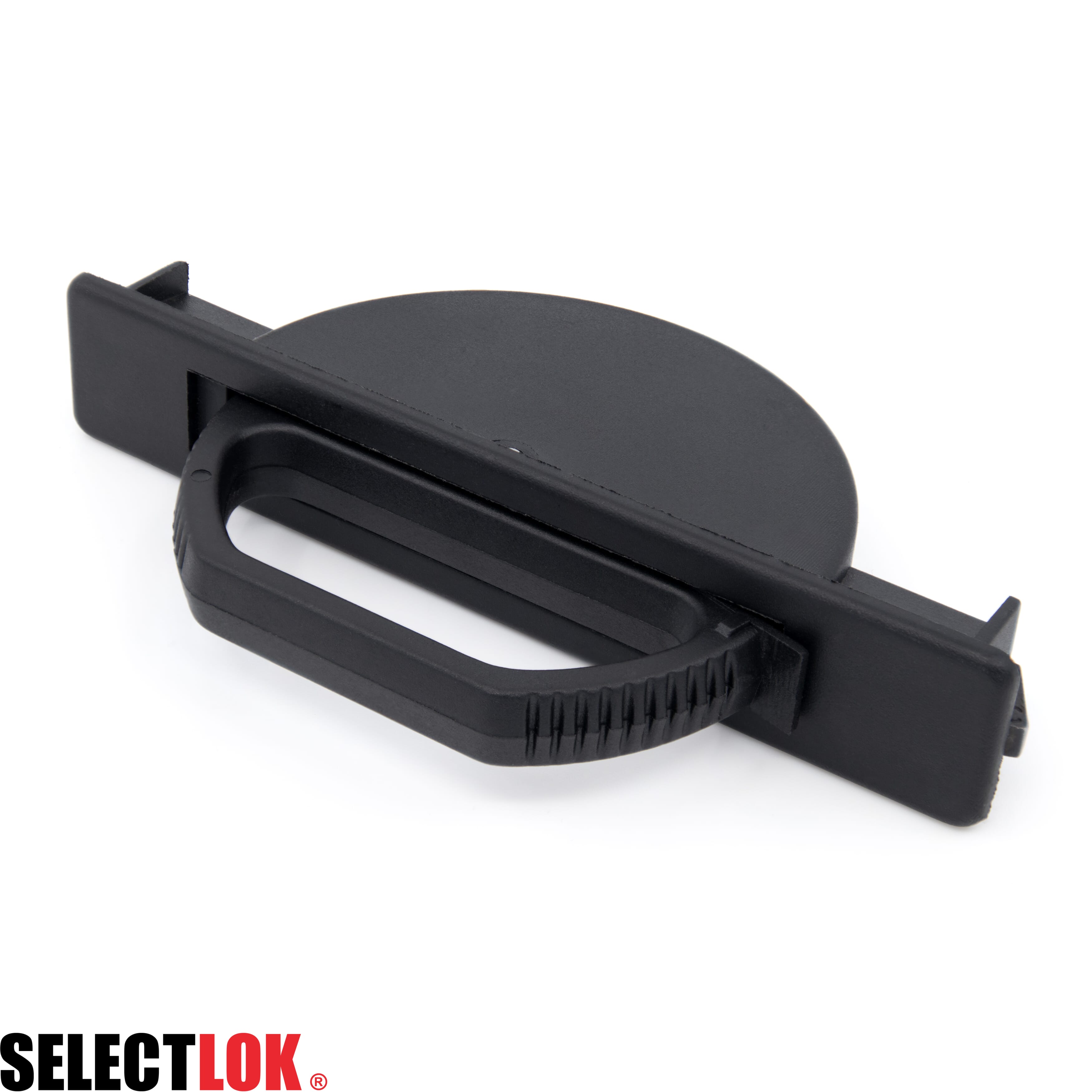

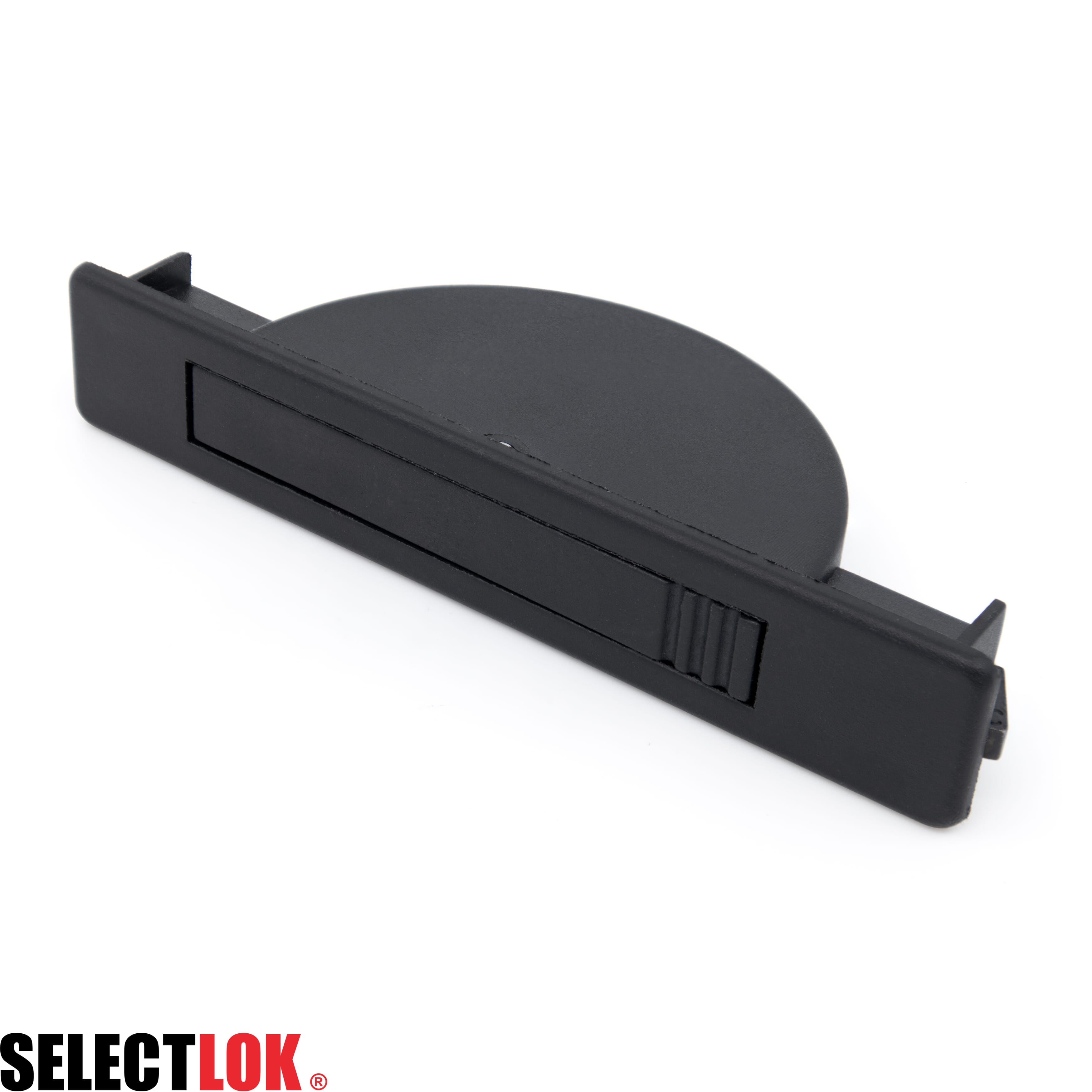

Dirak Revolving Pull Handle (DST)

Dirak Revolving Pull Handle (DST)

SKU:413-9005.00-00015

Price on Application
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Revolving pull handle with DIRAK-SNAP-Technology (DST)
  • This handle is suitable for the computer industry, 19" technology, enclosures, equipment, RV, and other applications.
  • Designed for vertical or horizontal uses.
  • The corrugation shows opening tab location.
  • A soft push on the tab rotates the handle into the final, open position.
  • Fully flush
  • Tool-less installation
  • Dirak Snapline D-Snap Technology

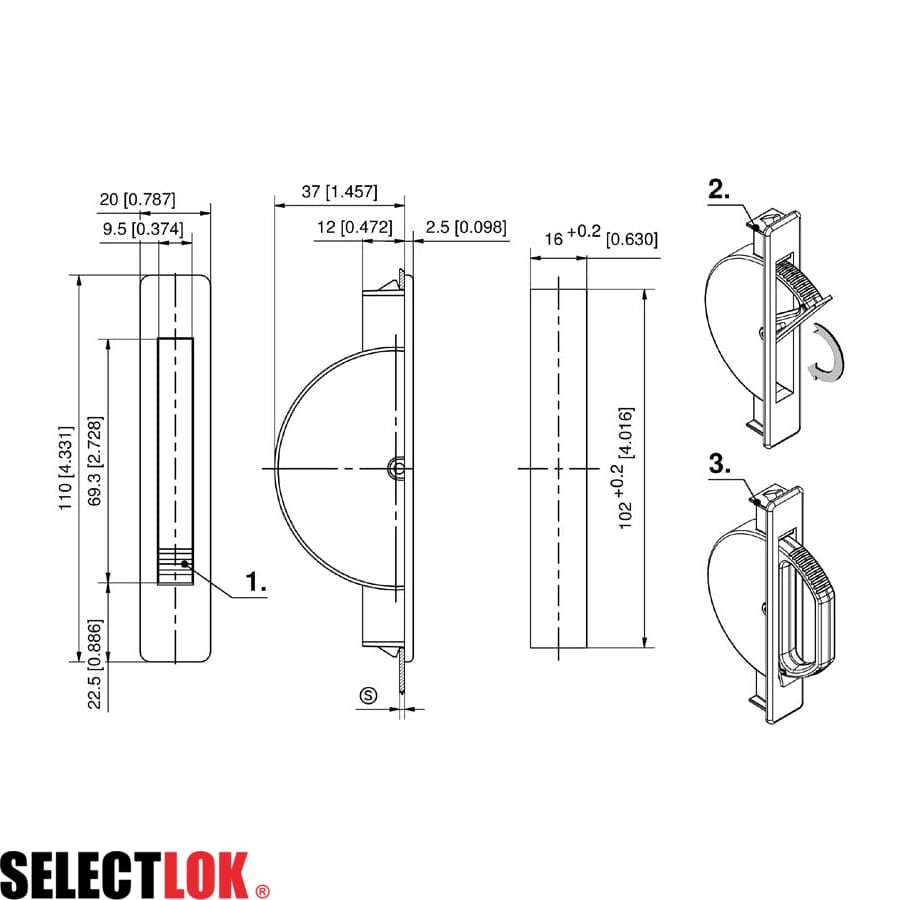

Dimensions:

  • Height = 100mm
  • Width = 20mm
  • Clamping range 0.8mm-1.5mm

Material & Finish:

  • Material = Polyamide
View Datasheet
